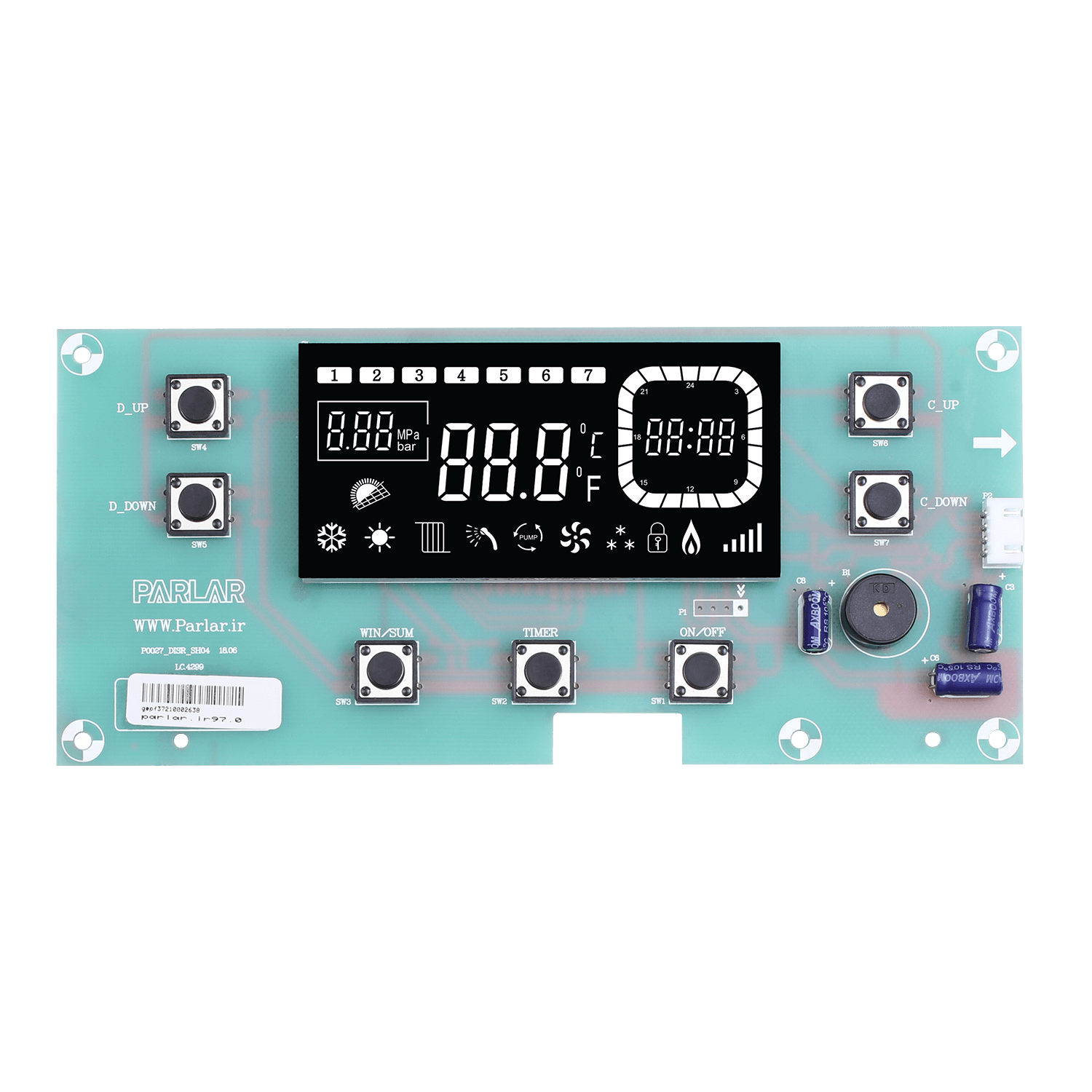

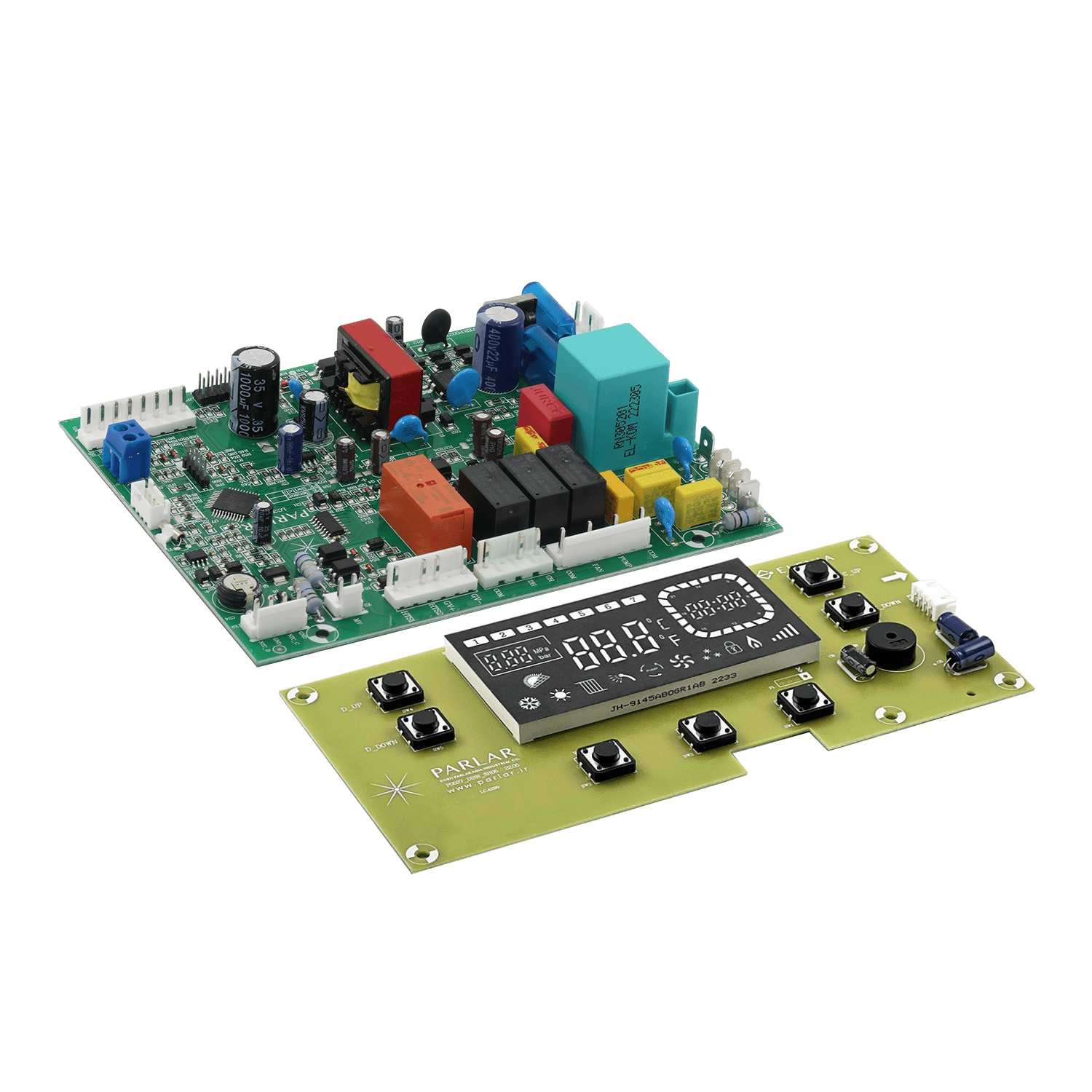

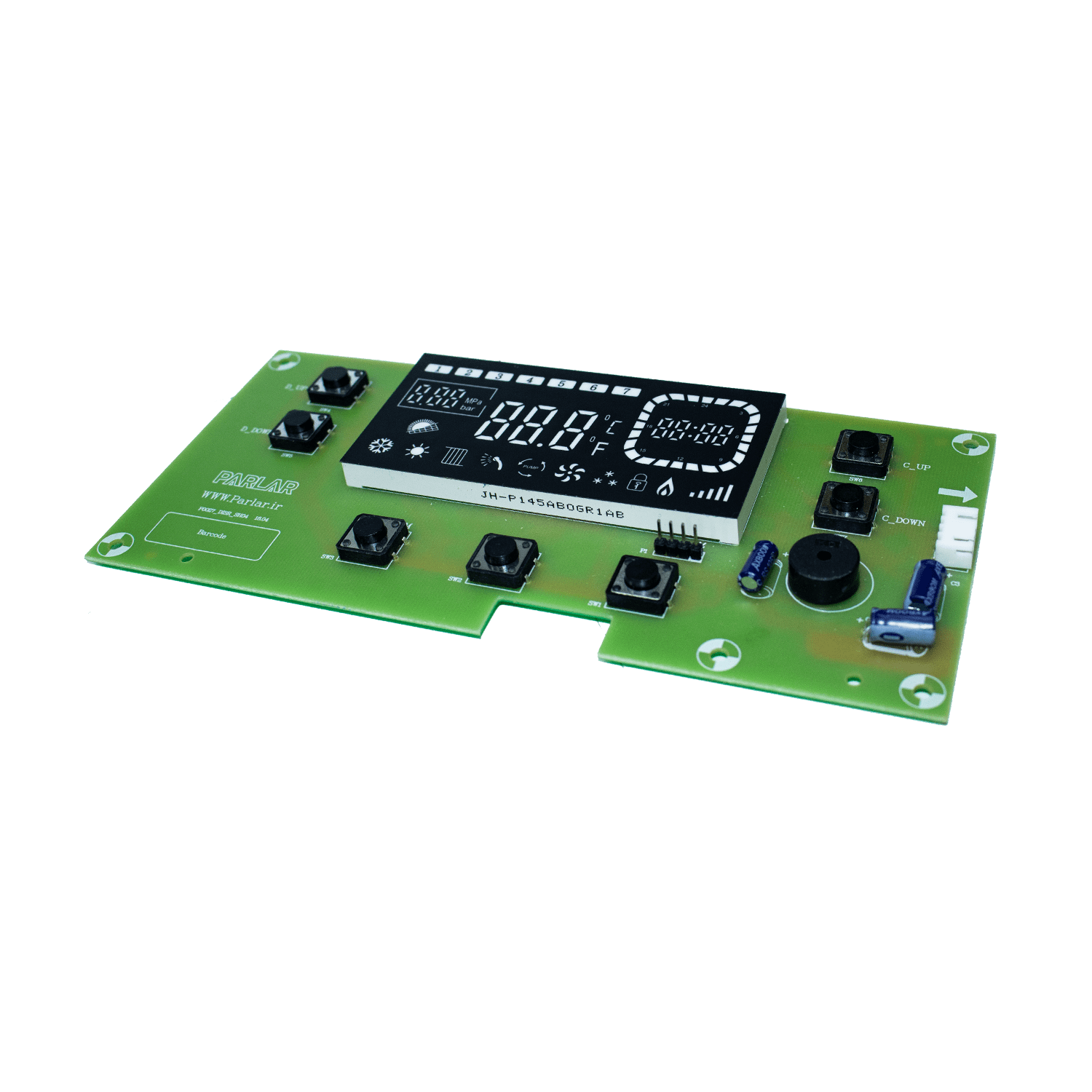

Boiler PCB board BP-1810

Anti Fast Cycling Feature (Adjustable)
Adjustable Ignition Capacity
DHW & CH Intelligent Temperature Control (Adjustable Max and Min Flame Level for Each One)
Anti Freez System
Water Pump Anti-Failure System & Three-Way Valve Anti-Block System Pump Failure & Water Valve Block Detection System
Supporting Room Thermostate
Self-Error-Diagnostic and Error Saving Feature
4 Adjustable On/Off Timers with Arbitrary Set-points (for 7 Days of week) Clock Operation Resume After Power-Outage Conditions
Central Heating System Selection (Under-Floor or Radiator)

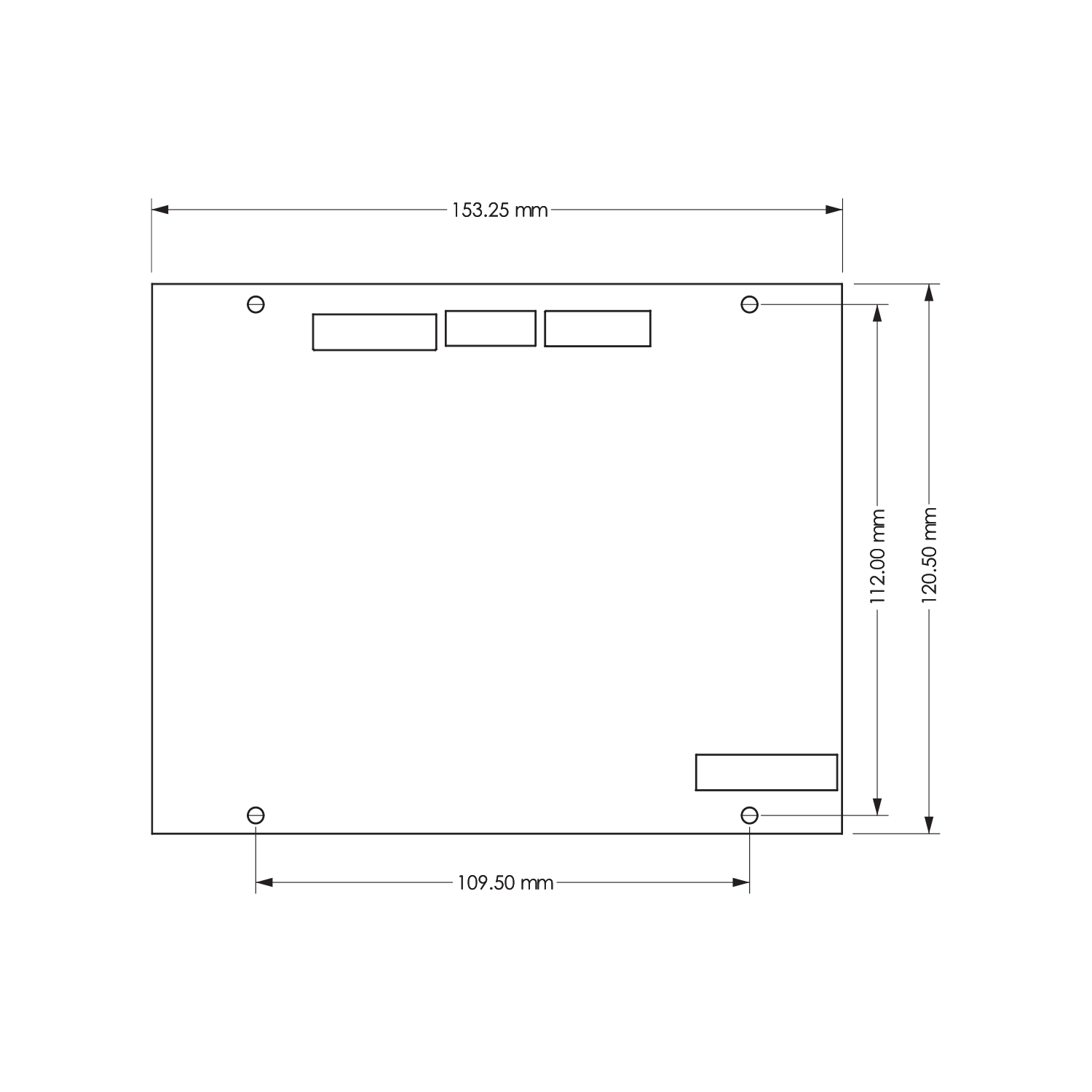

Dimention
150×98 mm, 153×122 mm

Display type
LED 7-Segment

Keys Type
Push Button

Working Voltage
170-240 VAC, 50Hz

Spark Type
Double Electrode , On-Board

Product Details

Dimention

,

Display type

Keys Type

Working Voltage

Max. Operating Temperature

Spark Type
