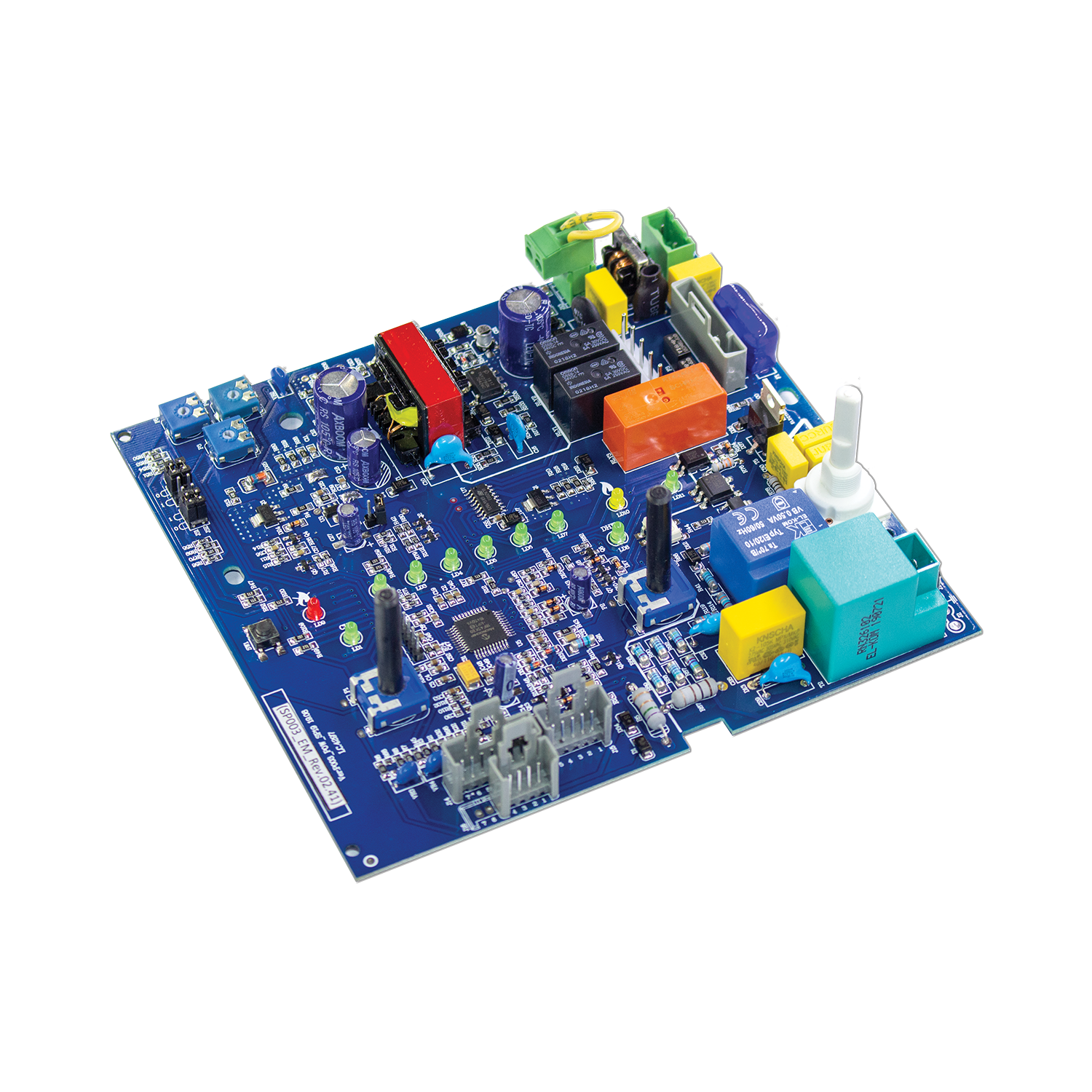

Boiler PCB board BP-1600
Adjustable Ignition Capacity
Hot Water & Central Heating Temperature Intelligent Control
Anti Freeze System
Water Pump Anti-Failure System & Three-Way Valve Anti-Block System Central Heating System Selection (Under-Floor or Radiator)
Room thermostat
flow switch option
APS or TTB OPTION
tank mode , comfort mode and only heating mode options
legionella bacteria proliferation preventing mode on tank mode
LPG / Natural Gas Usage Selection
Supporting Boilers with or Without Fan – Automatic Fan Detection System Using Single Electrode for Both Ignitor & Flame Detection
|

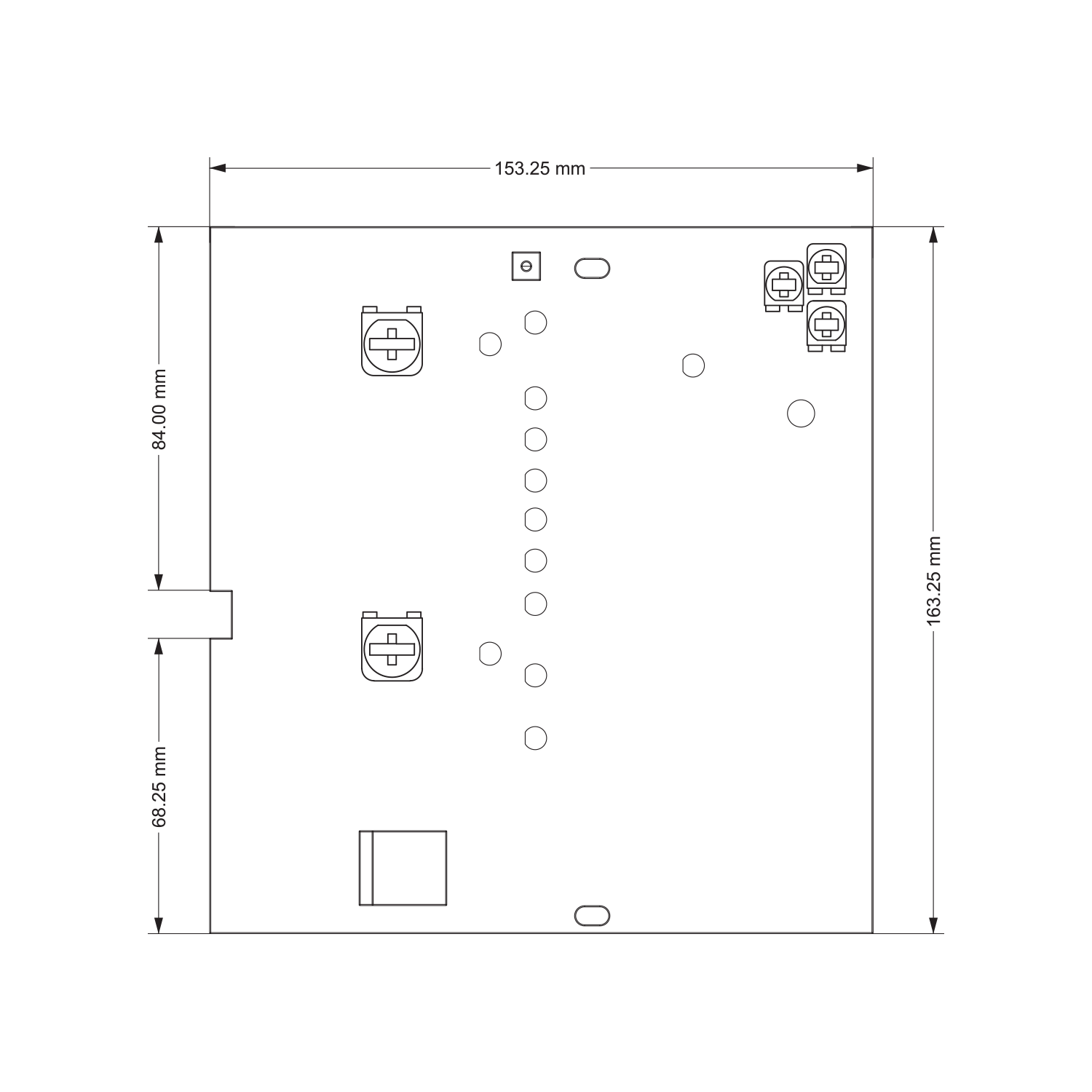

Dimention 163×153 mm |
Display type LED 7-Segment |
Keys Type Rotary Switch |
Working Voltage 170-240 VAC, 50Hz |
Keys No. 6 |
Product Details
| Dimention | |
|---|---|
| Display type | |
| Keys Type | |
| Working Voltage | |
| Max. Operating Temperature | |
| Num. of Keys | |
| Spark Type |
